Accessories

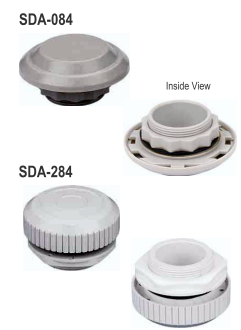

PRESSURE COMPENSATION DEVICE
(SDA-084/ SDA-284)
-BgCMzzDN.png)
features
- High Degree of Protection
- Waterproof Membrane (SDA-284)
- Easy to Install
Pressure compensation plug ensures a protected environment for electrical components by regulating pressure and preventing dust, humidity, and water ingress.
Principle of Operation
- It has become more important to provide a protected enclosure environment for crucial electrical and electronic components.
- In a tightly closed enclosure, pressure differentials can occur during extreme temperature variations, such as day/night operation.
- When this occurs, the risk of dust and humidity being absorbed into the control panel increases dramatically.
- The specially designed pressure compensation plug SDA 084 permits a controlled change in pressure.
- It can be installed easily in any enclosure. Because of the plug's high degree of protection (IP45 for SDA-084 & IP66 for SDA-284), the protection type of the enclosure will not be affected.
- In SDA-284, even with slight overpressure, a waterproof membrane inside the plug allows humidity to escape while blocking water and dirt from entering the enclosure.

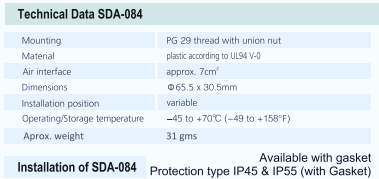

Installation of SDA-084
- SDA-084 Protection type IP45 & IP55 (with Gasket)
- Make cut-out ø37 +1 mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure.
- For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
Installation of SDA-084
- SDA-084 Available with gasket Protection type IP66
- Make cut-out ø40 5 mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure.
- For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
More info
-4lItqfHZ.png)
-Cvh7xbNm.png)
-ImQnDr7v.png)
-Dlpp89XJ.png)
